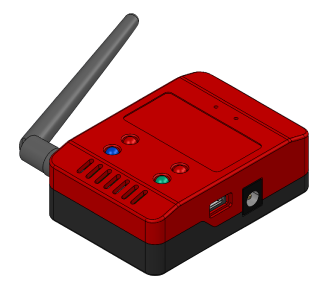

Locus - Ultra Wide-band Anchor

Locus is Senstornet’s UWB RF based RTLS product for indoor tracking application. Locus UWB tags along with the anchors are used to locate the x,y position of an asset or a person. The calculated position of an asset or a person is then positioned using the facility layout map in AMMC (Asset Monitoring and Management Console), a dashboard UI web-application. Locus can track an asset or a person to the accuracy of 25cm and gives a battery life up to 3 years.

Powered by Qorvo's DWM3000.

Arm® Cortex®-M4 powered host.

Programmable timer for periodic location alerts.

Locate and monitor the live-status of an asset.

Web based Dashboard UI with real time location plot and device management.

Features

Model Anchor
Power supply 5V external or Micro USB
Dimension 80x55x28 mm (LxWxH)
Distance accuracy 25 to 30 cm
Range 38 to 40 m
No. of anchors needed for one zone 4 anchors for an area of 28x28 m
Dashboard UI AMMC for RTLS
