Locus - Ultra Wide-band Tag
Locus is Senstornet’s UWB RF based RTLS product for indoor tracking application. Locus UWB tags along with the anchors are used to locate the x,y position of an asset or a person. The calculated position of an asset or a person is then positioned using the facility layout map in AMMC (Asset Monitoring and Management Console), a dashboard UI web-application. Locus can track an asset or a person to the accuracy of 25cm and gives a battery life up to 3 years.
Powered by Qorvo's DWM3000.
Arm® Cortex®-M4 powered host.
Smallest form factor (3cm sized tag).
Programmable wakeup timer for periodic location alerts.
Motion triggerred location alerts.
Locate and monitor the live-status of an asset.
Features

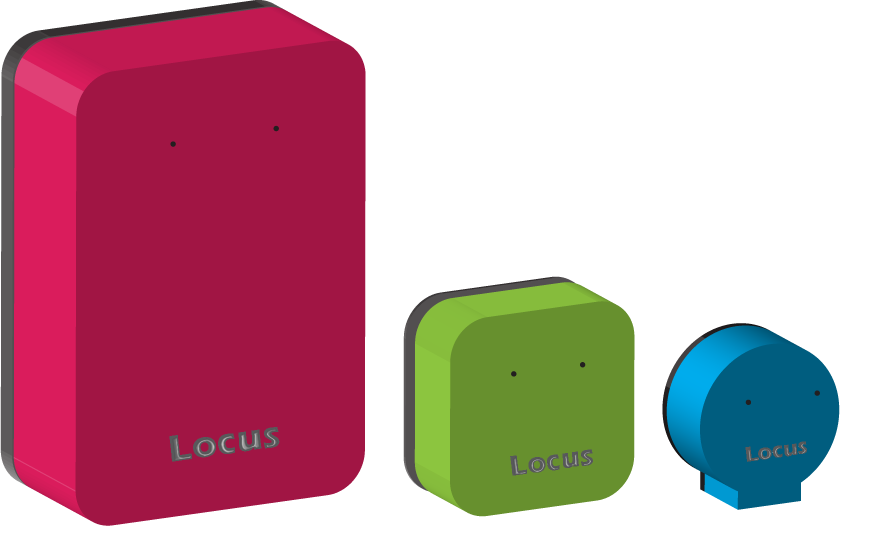

| Model | Mikro |
|---|---|
| Power supply | coin-cell |
| Battery type | Non-rechargeable |
| Battery Life | 1.5+ years* (depends on the data rate) |
| Dimension | 30x21 mm (DxH) |
| Distance accuracy | 25 to 30 cm |
| Dashboard UI | AMMC for RTLS |
| Model | Makro |
|---|---|
| Power supply | AA |
| Battery type | Non-rechargeable |
| Battery Life | 3+ years* (depends on the data rate) |
| Dimension | 98x65x35 mm (LxWxH) |
| Distance accuracy | 25 to 30 cm |
| Dashboard UI | AMMC for RTLS |
| Model | Mini |
|---|---|
| Power supply | 1/2AA |
| Battery type | Non-rechargeable |
| Battery Life | 2.5+ years* (depends on the data rate) |
| Dimension | 35x35x20 mm (LxWxH) |
| Distance accuracy | 25 to 30 cm |
| Dashboard UI | AMMC for RTLS |
