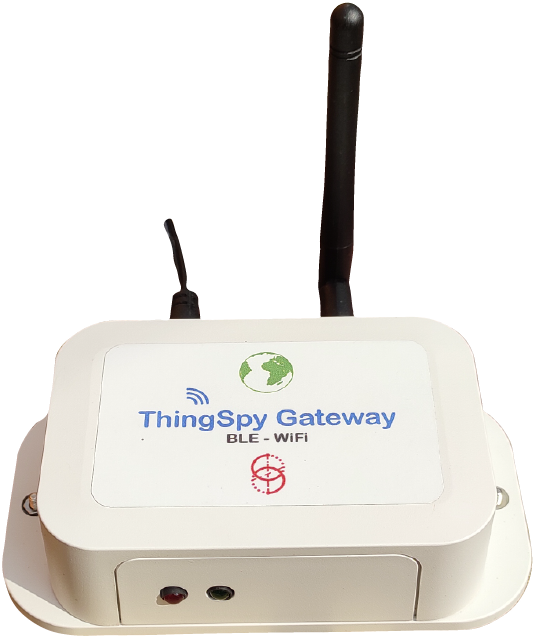

ThingSpy - IoT Gateway
Gateway used with Senstornet BLE IoT Sensors.
Arm® Cortex®-M4 powered
On-premises or remote connectivity
AWS integration for data retention and ML
HTTPS and MQTT protocol
Auto scan and connect
I2C, USART, CAN, SPI and analog input channels to connect with external sensors.
Local memory storage with FAT File system
Wall mounting flange bottom design
Powerful Bluetooth LE and Wi-Fi MCU modules with external antenna.
Features
| Model | ThingSpy Gateway |
|---|---|
| wireless type | Downstream:BLE, Upstream: WIFI |
| Local Storage | Micro SD card |
| Max IoT sensors | 16 per gateway |
| Ports | 1x I2C or 1x USART, 1x SPI, 1x CAN, 2x Analogue input, 2x Digital IO |
| Antenna | External antenna |
| Power supply | External DC 5V 1A |
| Indicators | Yes, 2 LEDs |
| Operating range | -40 to +85 deg C |
| Dimension | 124.3 x 67.3 x 35 mm (L x D x H) |
| Dashboard UI | Web Application |
